Epson FpMate (v3.7.0.0) configuration guide

How to Configure EpsonFpMate (v3.7.0.0)

This guide provides the specific configuration settings for the EpsonFpMateConfig3.7.0.0 utility. In order for the Italy Fiscal integration to work, the following settings are required. Open the application and follow these steps to configure each tab.

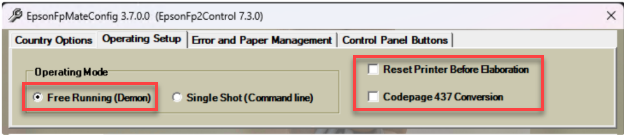

1. Operating Setup Tab

Navigate to the Operating Setup tab and apply the following settings:

• Operating Mode: Select Free Running (Demon).
• Reset Printer Before Elaboration: Ensure this is unchecked.

• Codepage 437 Conversion: Ensure this is unchecked.

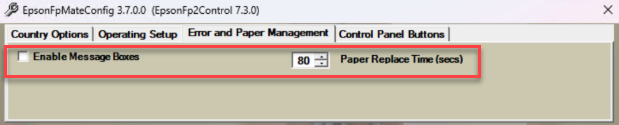

2. Error and Paper Management Tab

Navigate to the Error and Paper Management tab and apply the following settings:

• Enable Message Boxes: Ensure this is unchecked.

• Paper Replace Time (secs): Set the value to 80 .



3. Input File Options Tab

Navigate to the Input File Options tab and apply the following settings:

• File Name: Enter *
• [path]: Enter the path C:\epson\fpmate\input
• File Extension: Select .Xml .

• Synchronisation: Ensure this is unchecked.

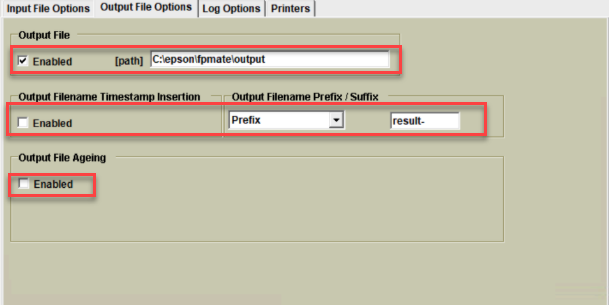

4. Output File Options Tab

Navigate to the Output File Options tab and apply the following settings:

• Output File: Check the Enabled box.
• [path]: Enter the path C:\epson\fpmate\output
• Output Filename Timestamp Insertion: Ensure Enabled is unchecked.
• Output Filename Prefix / Suffix:
  • Select Prefix from the dropdown menu.
  • Enter result- in the text field.

• Output File Ageing: Ensure Enabled is unchecked.
