Appendix Instructions for Keycard authenticated Users for Visionline (Assa Abloy)

Mariia Korostashevych
Updated

Create a dedicated user in Visionline

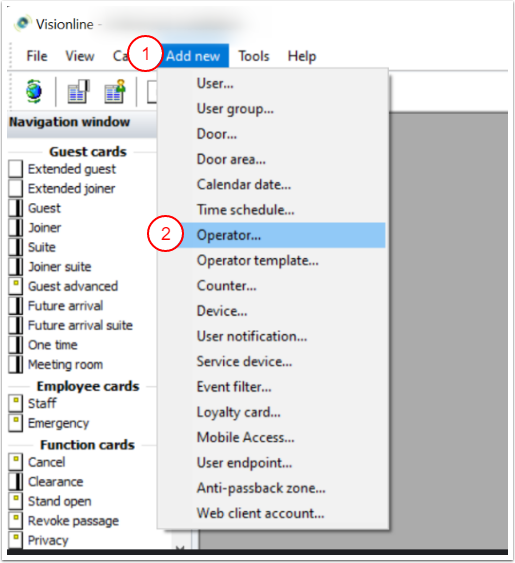

  1. Select Add new
  2. Choose Operator

Visionline (Assa Abloy) 1.png

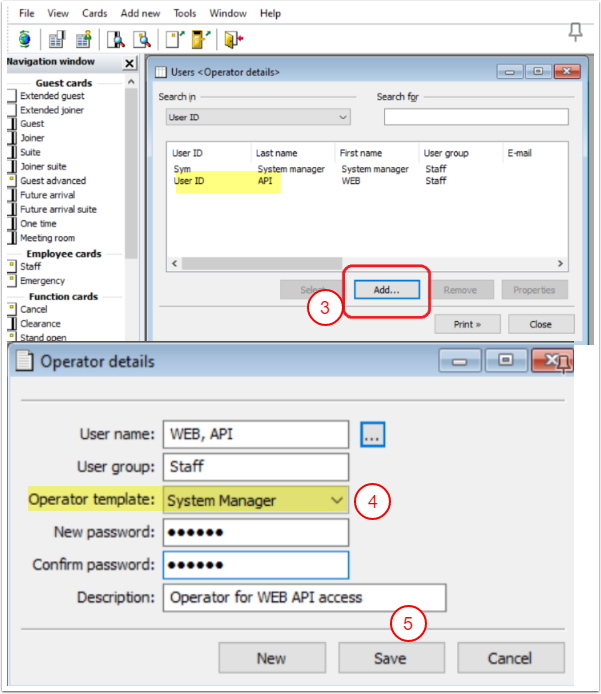

  1. In the Operators dialog: Click Add and fill in the fields
  2. Choose System manager as an operator template
  3. Click Save and close

Visionline (Assa Abloy) 2.png

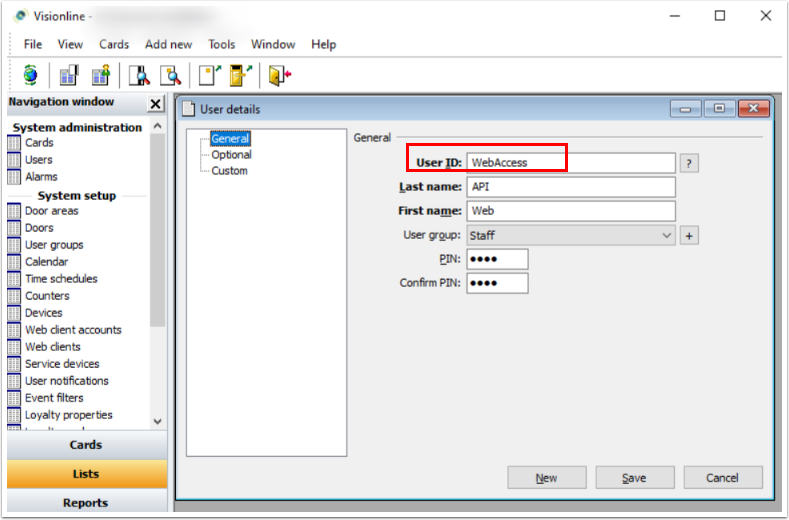

  UserID can be anything, but we recommend WebAccess. The UserID must not contain spaces. This is the UserID that needs to be provided in the Integrator app.

Visionline (Assa Abloy) 3.png

  1. Web Client account is now added.

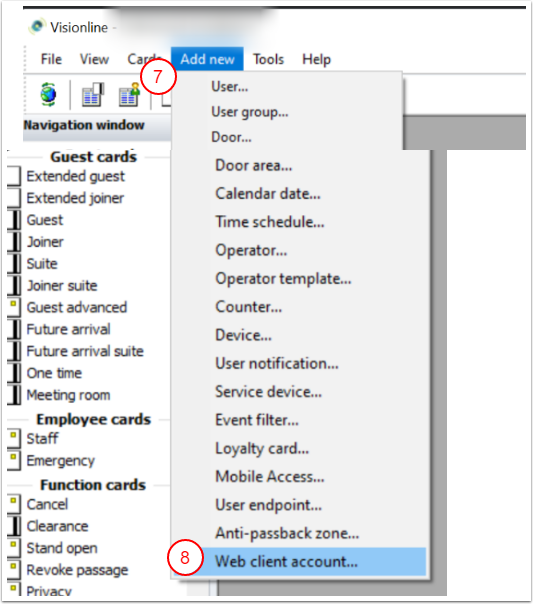

  2. Go to the menu Add new
  3. Choose Web client account

Visionline (Assa Abloy) 4.png

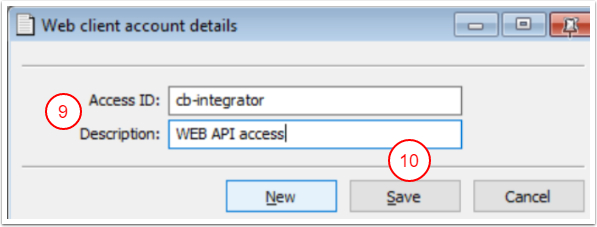

  1. Enter Access ID and, if desired, a description. Use cb-integrator as the Access ID (required for integration).
  2. Save and close.

Visionline (Assa Abloy) 5.png

Add Connection to the Cloudbeds Integrator

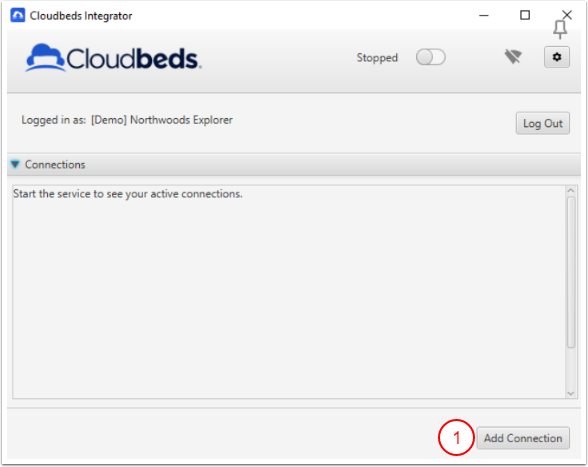

  1. Return to the Cloudbeds Integrator App and click Add Connection.

Add Connection to the Cloudbeds Integrator 1.png

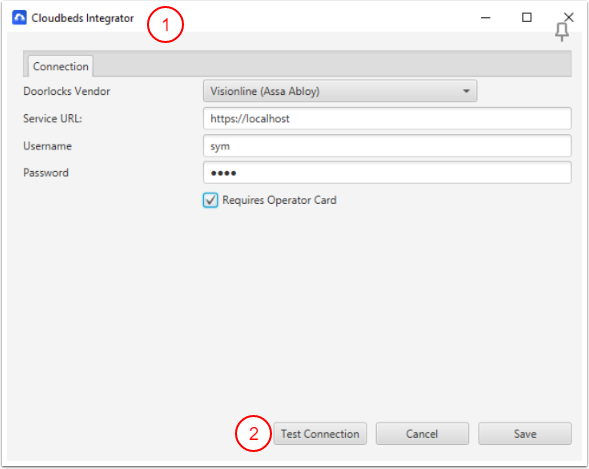

  1. On this screen you will enter the details of your Visionline software:
  • Select Visionline (Assa Abloy) as the Doorlocks Vendor.
  • For Service URL:
    • If the Cloudbeds Integrator is installed on the same machine as the Visionline software, enter: https://localhost
    • If If the Cloudbeds Integrator is installed on a different machine than the Visionline software, then enter: https://<ip_address> (replacing <ip_address> with the IP Address of the machine which is running Visionline).
  • For Username and Password enter the Username and Password you have setup a few steps before.

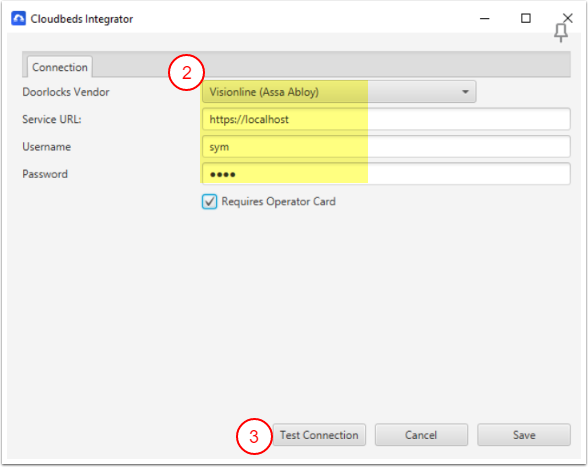

  1. Click Test Connection

Add Connection to the Cloudbeds Integrator 2.png

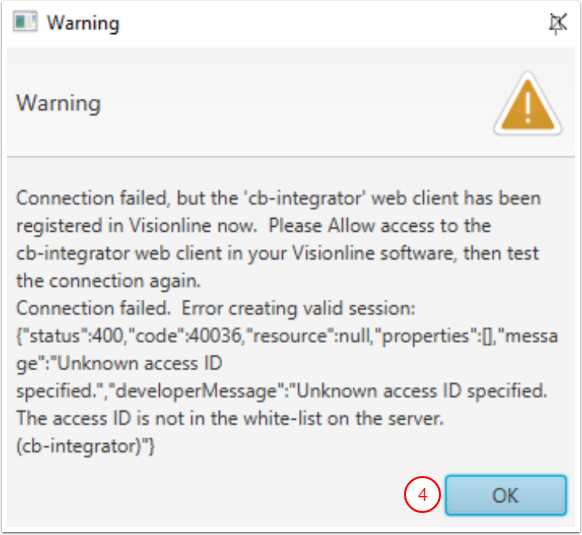

  1. This client has not yet been approved, so the connection will return an error. This is expected behavior. Click OK to close the window and leave the connection screen open.

Add Connection to the Cloudbeds Integrator 3.png

Allow WEB client access Visionline service

  Once you have tested the connection, this automatically adds the access ID to the Web clients list in Visionline for approval.

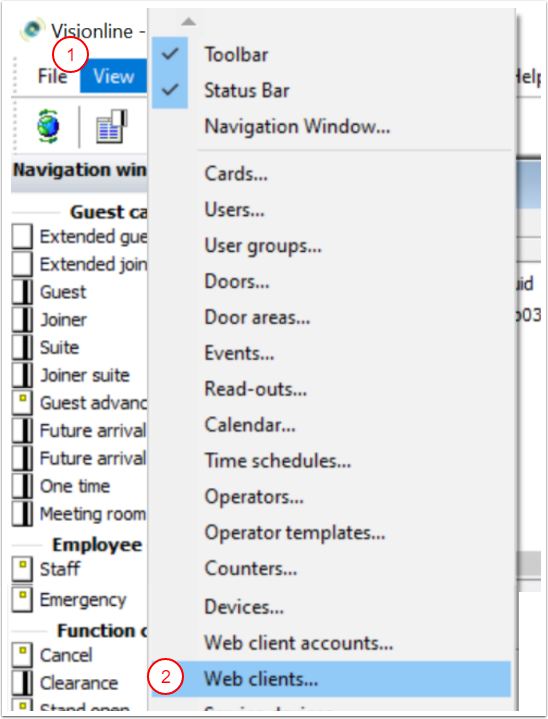

  1. Go to View.
  2. Select Web clients in the navigation window.

Allow WEB client access Visionline service 1.png

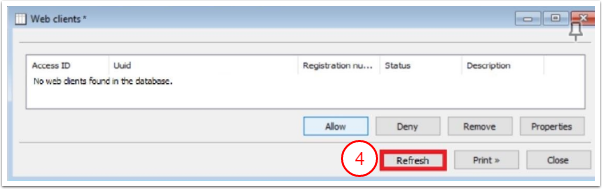

  1. The asterisk in the dialog caption indicates that the web client is trying to log in.
  2. Click Refresh.

Allow WEB client access Visionline service 2.png

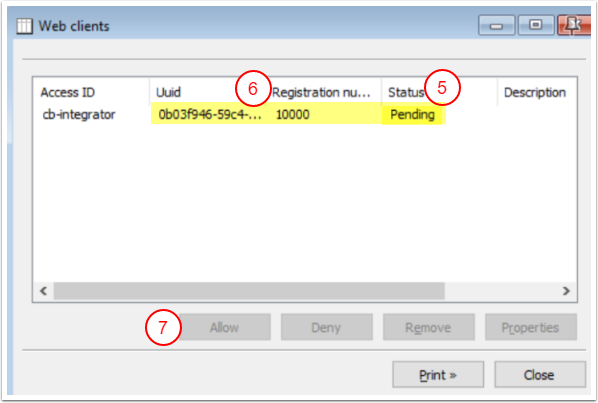

  1. The web client will appear in the Web clients list with status Pending.
  2. The Uuid comes from the web client and is unique for that client. The Registration number is created by Visionline and is also a unique number which is applicable for certain types of web clients.
  3. Mark the web client in the list and click Allow.

Allow WEB client access Visionline service 3.png

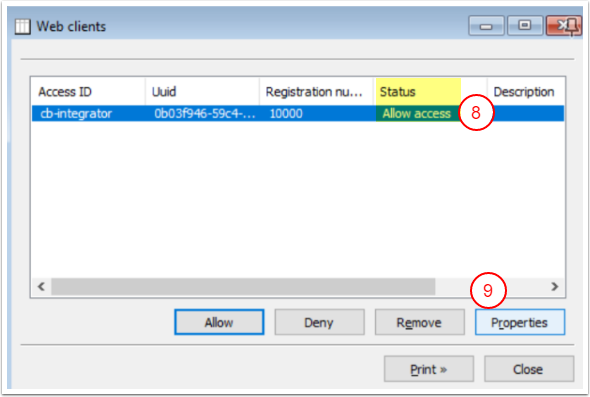

  1. The status will change to Allow access.
  2. Mark the web client and click Properties.

Allow WEB client access Visionline service 4.png

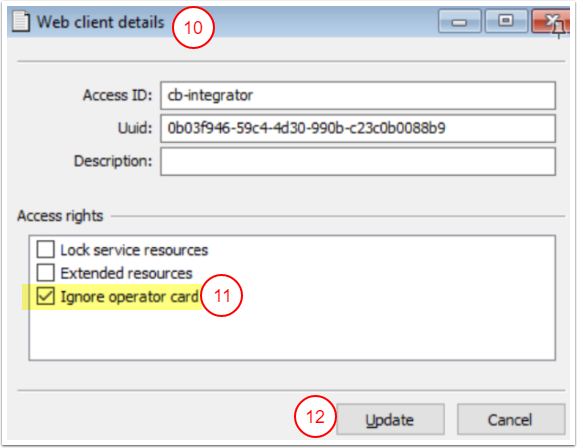

  1. The Web client details dialog will be shown.
  2. Mark the checkbox Ignore operator card.
  3. Click Update.

Allow WEB client access Visionline service 5.png

The web client should now be able to log in and use the ASSA ABLOY Global Solutions Web API.

Finalize Connection to the Cloudbeds Integrator

  1. Return to the Cloudbeds Integrator App.
  2. Click Test Connection again.

Finalize Connection to the Cloudbeds Integrator 1.png

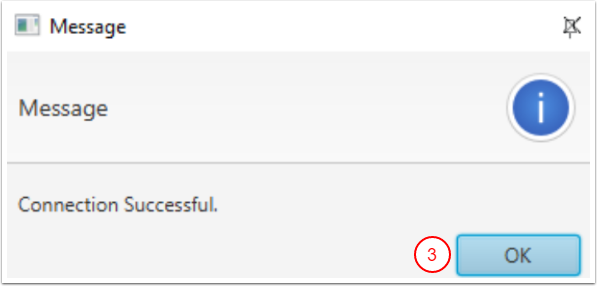

  1. Click OK to close and save this connection.

Finalize Connection to the Cloudbeds Integrator 2.png

Continue with the rest of the Connection Guide: Step 3 - Door Mapping.
